Product Inventory API

Communication diagram

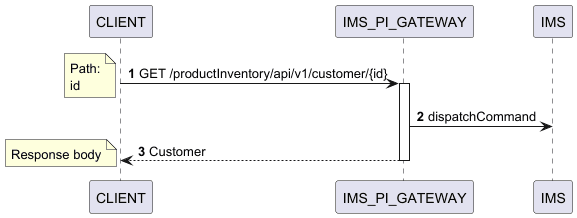

The diagrams below illustrate communication between the server and the client in Product Inventory model. The example showcases the interaction within the actions performed on the Customer entity.

Response body is in JSON format and is described in getCustomerById section.

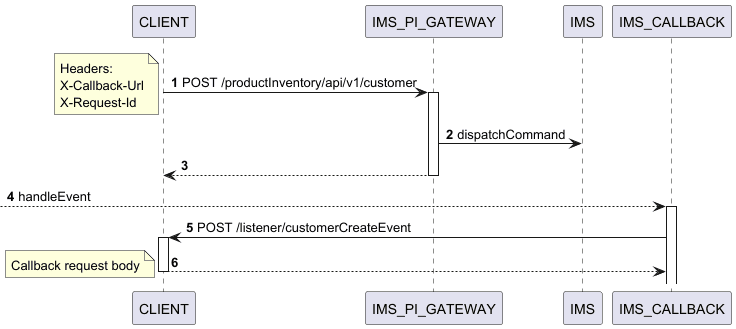

The callback request body for POST request in JSON format is described in postCustomerCreateEventListener section.

API

Customer

getCustomerById

GET /customer/{id}

Retrieves a Customer by its ID.

Parameters

Name	In	Type	Required	Description
id	path	string	true	Identifier of the Customer

Responses

Status	Meaning	Description	Schema
200	Success	Customer retrieved successfully	JSON
400	Bad Request	Bad request	JSON
401	Unauthorized	Access token is missing or invalid	JSON
403	Forbidden	Access is forbidden	JSON
404	Not Found	Customer not found	JSON
405	Method Not Allowed	HTTP method is not allowed	JSON
409	Conflict	Conflict occurred while processing	JSON
500	Internal Server Error	Internal server error	JSON

Example Success Response

200 Response:

{
  "id": "307",
  "href": "http://localhost/productInventory/api/v1/customer/307",
  "name": "string"
}

deleteCustomerById

DELETE /customer/{id}

Delete a Customer by its ID.

Parameters

Name	In	Type	Required	Description
X-Request-Id	header	string	true	A unique identifier (UUID)
X-Callback-Url	header	string	true	A callback URL
id	path	string	true	Identifier of the Customer

Responses

Status	Meaning	Description	Schema
202	Accepted	Customer deletion accepted	None
400	Bad Request	Bad request	JSON
401	Unauthorized	Access token is missing or invalid	JSON
403	Forbidden	Access is forbidden	JSON
404	Not Found	Customer not found	JSON
405	Method Not Allowed	HTTP method is not allowed	JSON
409	Conflict	Conflict occurred while processing	JSON
500	Internal Server Error	Internal server error	JSON

createCustomer

POST /customer

Parameters

Name	In	Type	Required	Description
X-Request-Id	header	string	true	A unique identifier (UUID)
X-Callback-Url	header	string	true	A callback URL

Request Body

The Customer to be created.

Example:

{
  "id": "CRM Customer ID",
  "name": "Name of Customer"
}

Responses

Status	Meaning	Description	Schema
202	Accepted	Customer creation accepted	None
400	Bad Request	Bad request	JSON
401	Unauthorized	Access token is missing or invalid	JSON
403	Forbidden	Access is forbidden	JSON
405	Method Not Allowed	HTTP method is not allowed	JSON
409	Conflict	Conflict occurred while processing	JSON
500	Internal Server Error	Internal server error	JSON

Headers

Name	Type	Required	Description
X-Request-Id	string	true	A unique identifier (UUID)
X-Callback-Url	string	true	A callback URL

Billing account

getBillingAccountById

GET /billingAccount/{id}

Parameters

Name	In	Type	Required	Description
id	path	string	true	Identifier of the billing account to fetch

Responses

Status	Meaning	Description	Schema
200	No Content	Billing account was found successfully	BillingAccount
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
404	Not Found	Customer not found	None
500	Internal Server Error	Internal server error	None

Example response 200:

{
  "id": "123456",
  "href": "http://localhost/productInventory/api/v1/billingAccount/997",
  "name": "Name of BA",
  "place": [
    {
      "role": "INSTALLATION_ADDRESS",
      "address": {
        "country": "POLSKA",
        "locality": "GORZÓW WIELKOPOLSKI",
        "localNr": "4",
        "postcode": "66-400",
        "stateOrProvince": "LUBUSKIE",
        "streetName": "KURATOWSKIEJ",
        "streetNr": "43B",
        "streetType": "UL.",
        "type": "INSTALLATION_ADDRESS",
        "city": "GORZÓW WIELKOPOLSKI"
      }
    }
  ],
  "state": "active",
  "relatedParty": [
    {
      "id": "307",
      "role": "OWNER"
    }
  ]
}

updateBillingAccount

PUT /billingAccount/{id}

Parameters

Name	In	Type	Required	Description
X-Request-Id	header	string	true	A unique identifier (UUID)
X-Callback-Url	header	string	true	A callback URL
id	path	string	true	Identifier of the billing account

Request Body

The billing account to be modified.

Example:

{
  "id": "123456",
  "name": "Name of BA",
  "state": "active",
  "relatedParty": [
    {
      "id": "307",
      "role": "OWNER"
    }
  ]
}

Responses

Status	Meaning	Description	Schema
202	Accepted	Billing account was updated	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

deleteBillingAccount

DELETE /billingAccount/{id}

Deletes a billing account entity.

Parameters

Name	In	Type	Required	Description
X-Request-Id	header	string	true	A unique identifier (UUID)
X-Callback-Url	header	string	true	A callback URL
id	path	string	true	Identifier of the billing account

Responses

Status	Meaning	Description	Schema
202	Accepted	Billing account deletion accepted	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Billing account not found	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

createBillingAccount

POST /billingAccount

Creates a billing account entity.

Parameters

Name	In	Type	Required	Description
X-Request-Id	header	string	true	A unique identifier (UUID)
X-Callback-Url	header	string	true	A callback URL

Request Body

The billing account to be created.

Example:

{
  "id": "123456",
  "name": "Name of BA",
  "state": "new",
  "relatedParty": [
    {
      "id": "307",
      "role": "OWNER"
    }
  ]
}

Responses

Status	Meaning	Description	Schema
202	Accepted	Billing account creation accepted	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

updateBillingAccountState

PUT /billingAccount/{id}/state

Modifies the state of a Billing Account entity.

Parameters

Name	In	Type	Required	Description
X-Request-Id	header	string	true	A unique identifier (UUID)
X-Callback-Url	header	string	true	A callback URL
id	path	string	true	Identifier of the Billing Account

Request Body

The Billing Account state to be set.

Example:

{
  "state": "new"
}

Responses

Status	Meaning	Description	Schema
202	Accepted	Billing account state modification accepted	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

Product

createProduct

POST /product

Creates a Product entity.

Parameters

Name	In	Type	Required	Description
X-Request-Id	header	string	true	A unique identifier (UUID)
X-Callback-Url	header	string	true	A callback URL

Request Body

The Product to be created.

Example:

{
  "isBundled": false,
  "place": [
    {
      "role": "INSTALLATION_ADDRESS",
      "address": {
        "country": "POLSKA",
        "locality": "GORZÓW WIELKOPOLSKI",
        "localNr": "4",
        "postcode": "66-400",
        "stateOrProvince": "LUBUSKIE",
        "streetName": "KURATOWSKIEJ",
        "streetNr": "43B",
        "streetType": "UL.",
        "type": "INSTALLATION_ADDRESS",
        "city": "GORZÓW WIELKOPOLSKI"
      }
    }
  ],
  "billingAccount": {
    "id": "19e3b2aa-1f92-11ed-861d-0242ac120002"
  },
  "productCharacteristic": [
    {
      "name": "servedOperator",
      "value": "4"
    },
    {
      "name": "technology",
      "value": "FTTH"
    }
  ],
  "productSpecification": {
    "id": "GPONAccess",
    "name": "GPONAccess",
    "version": "1.0"
  },
  "relatedParty": [
    {
      "id": "307",
      "role": "OWNER"
    }
  ]
}

Responses

Status	Meaning	Description	Schema
202	Accepted	Product creation accepted	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

getListOrFindProductObjects

GET /product

Lists or finds Product entities. Possible queries: customerId, serialNumber.

Parameters

Name	In	Type	Required	Description
customerId	query	string	false	Query using customerId of Product
offset	query	integer	false	Requested index for start of resources in response
limit	query	integer	false	Requested number of resources in response

Responses

Status	Meaning	Description	Schema
200	Success	A JSON array of Product objects	List
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	No matching Product objects found	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

Example Response

200 Response:

[
  {
    "id": "997",
    "href": "http://localhost/productInventory/api/v1/product/997",
    "isBundled": false,
    "place": [
      {
        "role": "INSTALLATION_ADDRESS",
        "address": {
          "country": "POLSKA",
          "locality": "GORZÓW WIELKOPOLSKI",
          "localNr": "4",
          "postcode": "66-400",
          "stateOrProvince": "LUBUSKIE",
          "streetName": "KURATOWSKIEJ",
          "streetNr": "43B",
          "streetType": "UL.",
          "type": "INSTALLATION_ADDRESS",
          "city": "GORZÓW WIELKOPOLSKI"
        }
      }
    ],
    "billingAccount": {
      "id": "19e3b2aa-1f92-11ed-861d-0242ac120002"
    },
    "productCharacteristic": [
      {
        "name": "servedOperator",
        "value": "4"
      },
      {
        "name": "technology",
        "value": "FTTH"
      }
    ],
    "productSpecification": {
      "id": "GPONAccess",
      "name": "GPONAccess",
      "version": "1.0"
    },
    "relatedParty": [
      {
        "id": "307",
        "role": "OWNER"
      }
    ]
  }
]

Headers

Name	Description	Type
X-Total-Count	Total number of items matching criteria	integer
X-Result-Count	Actual number of items returned in response	integer

getProductBySerialNumber

GET /product/productSerialNumber/{productSerialNumber}

Retrieves a Product entity by its serial number. Attribute selection is enabled for all first-level attributes.

Parameters

Name	In	Type	Required	Description
productSerialNumber	path	string	true	Serial number of the Product

Responses

Status	Meaning	Description	Schema
200	Success	Product retrieved successfully	JSON
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	No Product found for the given serial number	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

Example Response

200 Response:

{
  "id": "997",
  "href": "http://localhost/productInventory/api/v1/product/997",
  "isBundled": false,
  "productSerialNumber": "536346-423423-432423",
  "place": [
    {
      "role": "INSTALLATION_ADDRESS",
      "address": {
        "country": "POLSKA",
        "locality": "GORZÓW WIELKOPOLSKI",
        "localNr": "4",
        "postcode": "66-400",
        "stateOrProvince": "LUBUSKIE",
        "streetName": "KURATOWSKIEJ",
        "streetNr": "43B",
        "streetType": "UL.",
        "type": "INSTALLATION_ADDRESS",
        "city": "GORZÓW WIELKOPOLSKI"
      }
    }
  ],
  "billingAccount": {
    "id": "19e3b2aa-1f92-11ed-861d-0242ac120002"
  },
  "productCharacteristic": [
    {
      "name": "servedOperator",
      "value": "4"
    },
    {
      "name": "technology",
      "value": "FTTH"
    }
  ],
  "productSpecification": {
    "id": "GPONAccess",
    "name": "GPONAccess",
    "version": "1.0"
  },
  "relatedParty": [
    {
      "id": "307",
      "role": "OWNER"
    }
  ]
}

Notes

This operation supports the retrieval of all first-level attributes for the specified Product.

updateProduct

PUT /product/{id}

Modifies Product.

Parameters

Name	In	Type	Required	Description
X-Request-Id	header	string	true	A unique identifier (UUID)
X-Callback-Url	header	string	true	A callback URL
id	path	string	true	Identifier of the Product

Request Body

The Product to be modified.

Example:

{
  "id": "997",
  "href": "http://localhost/productInventory/api/v1/product/997",
  "isBundled": false,
  "place": [
    {
      "role": "INSTALLATION_ADDRESS",
      "address": {
        "country": "POLSKA",
        "locality": "GORZÓW WIELKOPOLSKI",
        "localNr": "4",
        "postcode": "66-400",
        "stateOrProvince": "LUBUSKIE",
        "streetName": "KURATOWSKIEJ",
        "streetNr": "43B",
        "streetType": "UL.",
        "type": "INSTALLATION_ADDRESS",
        "city": "GORZÓW WIELKOPOLSKI"
      }
    }
  ],
  "billingAccount": {
    "id": "19e3b2aa-1f92-11ed-861d-0242ac120002"
  },
  "productCharacteristic": [
    {
      "name": "servedOperator",
      "value": "4"
    },
    {
      "name": "technology",
      "value": "FTTH"
    }
  ],
  "productSpecification": {
    "id": "GPONAccess",
    "name": "GPONAccess",
    "version": "1.0"
  },
  "relatedParty": [
    {
      "id": "307",
      "role": "OWNER"
    }
  ]
}

Responses

Status	Meaning	Description	Schema
202	Accepted	Product modification accepted	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

getProductById

GET /product/{id}

Retrieves a Product entity by its ID. Attribute selection is enabled for all first-level attributes.

Parameters

Name	In	Type	Required	Description
id	path	string	true	Identifier of the Product

Responses

Status	Meaning	Description	Schema
200	Success	Product retrieved successfully	JSON
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	No Product found for the given ID	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

Example Response

200 Response:

{
  "id": "997",
  "href": "http://localhost/productInventory/api/v1/product/997",
  "isBundled": false,
  "productSerialNumber": "N71433990000312",
  "place": [
    {
      "role": "INSTALLATION_ADDRESS",
      "address": {
        "country": "POLSKA",
        "locality": "GORZÓW WIELKOPOLSKI",
        "localNr": "4",
        "postcode": "66-400",
        "stateOrProvince": "LUBUSKIE",
        "streetName": "KURATOWSKIEJ",
        "streetNr": "43B",
        "streetType": "UL.",
        "type": "INSTALLATION_ADDRESS",
        "city": "GORZÓW WIELKOPOLSKI"
      }
    }
  ],
  "billingAccount": {
    "id": "19e3b2aa-1f92-11ed-861d-0242ac120002"
  },
  "productCharacteristic": [
    {
      "name": "modelCode",
      "value": "HUA_GW"
    },
    {
      "name": "deliveryType",
      "value": "TECHNICAL_PARTNER_DELIVERY"
    },
    {
      "name": "logisticType",
      "value": "DELIVERY"
    }
  ],
  "productSpecification": {
    "id": "GATEWAY",
    "name": "GATEWAY",
    "version": "1.0"
  },
  "relatedParty": [
    {
      "id": "307",
      "role": "OWNER"
    }
  ]
}

deleteProduct

DELETE /product/{id}

Delete Product.

Parameters

Name	In	Type	Required	Description
X-Request-Id	header	string	true	A unique identifier (UUID)
X-Callback-Url	header	string	true	A callback URL
id	path	string	true	Identifier of the Product

Responses

Status	Meaning	Description	Schema
202	Accepted	Product deletion accepted	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Product not found	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

updateProductState

PUT /product/{id}/state

Modifies the state of a Product entity.

Parameters

Name	In	Type	Required	Description
X-Request-Id	header	string	true	A unique identifier (UUID)
X-Callback-Url	header	string	true	A callback URL
id	path	string	true	Identifier of the Product

Request Body

The state to be set for the Product.

Example:

{
  "state": "created"
}

Responses

Status	Meaning	Description	Schema
202	Accepted	Product state modification accepted	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
405	Method Not Allowed	HTTP method is not allowed	None
409	Conflict	Conflict occurred while processing	None
500	Internal Server Error	Internal server error	None

Client API

Customer notification event (callback)

Customer notification event is used to inform about modifications related to customer entity, such as:

Creation
Deletion

postCustomerCreateEventListener

POST /listener/customerCreateEvent

Client listener for customer created event.

Parameters

This endpoint has no parameters.

Request Body

The event data to be notified.

Example:

{
  "event": {
    "id": "307",
    "href": "http://localhost/productInventory/api/v1/customer/307",
    "name": "string"
  },
  "eventId": "string",
  "eventTime": "2024-11-20T12:25:42.423Z",
  "eventType": "string",
  "eventResult": "success",
  "correlationId": "string"
}

Responses

Status	Meaning	Description	Schema
201	Notified	Event notification successfully received	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Listener endpoint not found	None
405	Method Not Allowed	HTTP method is not allowed	None
500	Internal Server Error	Internal server error	None

postCustomerDeleteEventListener

POST /listener/customerDeleteEvent

Client listener for delete Customer.

Parameters

This endpoint has no parameters.

Request Body

The event data to be notified.

Example:

{
  "event": {
    "id": "307",
    "href": "http://localhost/productInventory/api/v1/customer/307",
    "name": "string"
  },
  "eventId": "string",
  "eventTime": "2024-11-20T12:30:17.214Z",
  "eventType": "string",
  "eventResult": "success",
  "correlationId": "string"
}

Responses

Status	Meaning	Description	Schema
201	Notified	Event notification successfully received	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Listener endpoint not found	None
405	Method Not Allowed	HTTP method is not allowed	None
500	Internal Server Error	Internal server error	None

Billing account notification event (callback)

Billing account notification event is used to inform about modifications related to billing account entity, such as:

Creation
Update
State change
Deletion

postBillingAccountCreateEventListener

POST /listener/billingAccountCreateEvent

Client listener for BillingAccountCreateEvent.

Parameters

This endpoint has no parameters.

Request Body

The event data to be notified.

Example:

{
  "event": {
    "id": "string",
    "href": "string",
    "name": "string",
    "place": [
      {
        "id": "string",
        "name": "string",
        "role": "string",
        "address": {
          "type": "string",
          "community": "string",
          "country": "string",
          "district": "string",
          "internalAddress": "string",
          "latitude": "string",
          "locality": "string",
          "longitude": "string",
          "localNr": "string",
          "postcode": "string",
          "stateOrProvince": "string",
          "streetName": "string",
          "streetType": "string",
          "streetNr": "string",
          "city": "string"
        }
      }
    ],
    "state": "new",
    "characteristic": [
      {
        "name": "string",
        "value": "string"
      }
    ],
    "relatedParty": [
      {
        "id": "string",
        "name": "string",
        "role": "string"
      }
    ]
  },
  "eventId": "string",
  "eventTime": "2024-11-24T16:16:04.871Z",
  "eventType": "string",
  "eventResult": "success",
  "correlationId": "string"
}

Responses

Status	Meaning	Description	Schema
201	Notified	Event notification successfully received	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Listener endpoint not found	None
405	Method Not Allowed	HTTP method is not allowed	None
500	Internal Server Error	Internal server error	None

Extensions

Field	Value
x-codegen-request-body-name	"data"

postBillingAccountChangeEventListener

POST /listener/billingAccountChangeEvent

Client listener for entity BillingAccountChangeEvent.

Parameters

This endpoint has no parameters.

Request Body

The event data to be notified.

Example:

{
  "event": {
    "id": "string",
    "href": "string",
    "name": "string",
    "place": [
      {
        "id": "string",
        "name": "string",
        "role": "string",
        "address": {
          "type": "string",
          "community": "string",
          "country": "string",
          "district": "string",
          "internalAddress": "string",
          "latitude": "string",
          "locality": "string",
          "longitude": "string",
          "localNr": "string",
          "postcode": "string",
          "stateOrProvince": "string",
          "streetName": "string",
          "streetType": "string",
          "streetNr": "string",
          "city": "string"
        }
      }
    ],
    "state": "new",
    "characteristic": [
      {
        "name": "string",
        "value": "string"
      }
    ],
    "relatedParty": [
      {
        "id": "string",
        "name": "string",
        "role": "string"
      }
    ]
  },
  "eventId": "string",
  "eventTime": "2024-11-24T16:22:42.695Z",
  "eventType": "string",
  "eventResult": "success",
  "correlationId": "string"
}

Responses

Status	Meaning	Description	Schema
201	Notified	Event notification successfully received	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Listener endpoint not found	None
405	Method Not Allowed	HTTP method is not allowed	None
500	Internal Server Error	Internal server error	None

Extensions

Field	Value
x-codegen-request-body-name	"data"

postBillingAccountStateChangeEventListener

POST /listener/billingAccountStateChangeEvent

Client listener for entity BillingAccountStateChangeEvent.

Parameters

This endpoint has no parameters.

Request Body

The event data to be notified.

Example:

{
  "event": {
    "id": "string",
    "href": "string",
    "name": "string",
    "place": [
      {
        "id": "string",
        "name": "string",
        "role": "string",
        "address": {
          "type": "string",
          "community": "string",
          "country": "string",
          "district": "string",
          "internalAddress": "string",
          "latitude": "string",
          "locality": "string",
          "longitude": "string",
          "localNr": "string",
          "postcode": "string",
          "stateOrProvince": "string",
          "streetName": "string",
          "streetType": "string",
          "streetNr": "string",
          "city": "string"
        }
      }
    ],
    "state": "new",
    "characteristic": [
      {
        "name": "string",
        "value": "string"
      }
    ],
    "relatedParty": [
      {
        "id": "string",
        "name": "string",
        "role": "string"
      }
    ]
  },
  "eventId": "string",
  "eventTime": "2024-11-24T16:27:29.228Z",
  "eventType": "string",
  "eventResult": "success",
  "correlationId": "string"
}

Responses

Status	Meaning	Description	Schema
201	Notified	Event notification successfully received	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Listener endpoint not found	None
405	Method Not Allowed	HTTP method is not allowed	None
500	Internal Server Error	Internal server error	None

Extensions

Field	Value
x-codegen-request-body-name	"data"

postBillingAccountDeleteEventListener

POST /listener/billingAccountDeleteEvent

Client listener for entity BillingAccountDeleteEvent.

Parameters

This endpoint has no parameters.

Request Body

The event data to be notified.

Example:

{
  "event": {
    "id": "string",
    "href": "string",
    "name": "string",
    "place": [
      {
        "id": "string",
        "name": "string",
        "role": "string",
        "address": {
          "type": "string",
          "community": "string",
          "country": "string",
          "district": "string",
          "internalAddress": "string",
          "latitude": "string",
          "locality": "string",
          "longitude": "string",
          "localNr": "string",
          "postcode": "string",
          "stateOrProvince": "string",
          "streetName": "string",
          "streetType": "string",
          "streetNr": "string",
          "city": "string"
        }
      }
    ],
    "state": "new",
    "characteristic": [
      {
        "name": "string",
        "value": "string"
      }
    ],
    "relatedParty": [
      {
        "id": "string",
        "name": "string",
        "role": "string"
      }
    ]
  },
  "eventId": "string",
  "eventTime": "2024-11-24T16:28:37.477Z",
  "eventType": "string",
  "eventResult": "success",
  "correlationId": "string"
}

Responses

Status	Meaning	Description	Schema
201	Notified	Event notification successfully received	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Listener endpoint not found	None
405	Method Not Allowed	HTTP method is not allowed	None
500	Internal Server Error	Internal server error	None

Extensions

Field	Value
x-codegen-request-body-name	"data"

Product notification event (callback)

Product notification event is used to inform about modifications related to product entity, such as:

Creation
Update
State change
Deletion

postProductCreateEventListener

POST /listener/productCreateEvent

Client listener for entity ProductCreateEvent.

Parameters

This endpoint has no parameters.

Request Body

The event data to be notified.

Example:

{
  "event": {
    "id": "string",
    "href": "string",
    "category": "string",
    "description": "string",
    "endDate": "2024-11-24T16:36:00.580Z",
    "isBundle": true,
    "name": "string",
    "orderDate": "2024-11-24T16:36:00.581Z",
    "productSerialNumber": "2024-11-24T16:36:00.581Z",
    "startDate": "2024-11-24T16:36:00.581Z",
    "billingAccountRef": {
      "id": "string",
      "href": "string"
    },
    "place": [
      {
        "id": "string",
        "name": "string",
        "role": "string",
        "address": {
          "type": "string",
          "community": "string",
          "country": "string",
          "district": "string",
          "internalAddress": "string",
          "latitude": "string",
          "locality": "string",
          "longitude": "string",
          "localNr": "string",
          "postcode": "string",
          "stateOrProvince": "string",
          "streetName": "string",
          "streetType": "string",
          "streetNr": "string",
          "city": "string"
        }
      }
    ],
    "productCharacteristic": [
      {
        "name": "string",
        "value": "string"
      }
    ],
    "productOffering": {
      "id": "string",
      "name": "string"
    },
    "productRelationship": [
      {
        "relationshipType": "implements",
        "Product": {
          "id": "string",
          "href": "string"
        }
      }
    ],
    "productSpecification": {
      "id": "string",
      "name": "string",
      "version": "string"
    },
    "relatedParty": [
      {
        "id": "string",
        "name": "string",
        "role": "string"
      }
    ],
    "state": "created"
  },
  "eventId": "string",
  "eventTime": "2024-11-24T16:36:00.581Z",
  "eventType": "string",
  "eventResult": "success",
  "correlationId": "string"
}

Responses

Status	Meaning	Description	Schema
201	Notified	Event notification successfully received	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Listener endpoint not found	None
405	Method Not Allowed	HTTP method is not allowed	None
500	Internal Server Error	Internal server error	None

Extensions

Field	Value
x-codegen-request-body-name	"data"

postProductChangeEventListener

POST /listener/productChangeEvent

Client listener for entity ProductAttributeValueChangeEvent.

Parameters

This endpoint has no parameters.

Request Body

The event data to be notified.

Example:

{
  "event": {
    "id": "string",
    "href": "string",
    "category": "string",
    "description": "string",
    "endDate": "2024-11-24T16:43:40.667Z",
    "isBundle": true,
    "name": "string",
    "orderDate": "2024-11-24T16:43:40.667Z",
    "productSerialNumber": "2024-11-24T16:43:40.667Z",
    "startDate": "2024-11-24T16:43:40.667Z",
    "billingAccountRef": {
      "id": "string",
      "href": "string"
    },
    "place": [
      {
        "id": "string",
        "name": "string",
        "role": "string",
        "address": {
          "type": "string",
          "community": "string",
          "country": "string",
          "district": "string",
          "internalAddress": "string",
          "latitude": "string",
          "locality": "string",
          "longitude": "string",
          "localNr": "string",
          "postcode": "string",
          "stateOrProvince": "string",
          "streetName": "string",
          "streetType": "string",
          "streetNr": "string",
          "city": "string"
        }
      }
    ],
    "productCharacteristic": [
      {
        "name": "string",
        "value": "string"
      }
    ],
    "productOffering": {
      "id": "string",
      "name": "string"
    },
    "productRelationship": [
      {
        "relationshipType": "implements",
        "Product": {
          "id": "string",
          "href": "string"
        }
      }
    ],
    "productSpecification": {
      "id": "string",
      "name": "string",
      "version": "string"
    },
    "relatedParty": [
      {
        "id": "string",
        "name": "string",
        "role": "string"
      }
    ],
    "state": "created"
  },
  "eventId": "string",
  "eventTime": "2024-11-24T16:43:40.667Z",
  "eventType": "string",
  "eventResult": "success",
  "correlationId": "string"
}

Responses

Status	Meaning	Description	Schema
201	Notified	Event notification successfully received	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Listener endpoint not found	None
405	Method Not Allowed	HTTP method is not allowed	None
500	Internal Server Error	Internal server error	None

Extensions

Field	Value
x-codegen-request-body-name	"data"

postProductStateChangeEventListener

POST /listener/productStateChangeEvent

Client listener for entity ProductStateChangeEvent.

Parameters

This endpoint has no parameters.

Request Body

The event data to be notified.

Example:

{
  "event": {
    "id": "string",
    "href": "string",
    "category": "string",
    "description": "string",
    "endDate": "2024-11-24T16:47:34.286Z",
    "isBundle": true,
    "name": "string",
    "orderDate": "2024-11-24T16:47:34.286Z",
    "productSerialNumber": "2024-11-24T16:47:34.286Z",
    "startDate": "2024-11-24T16:47:34.286Z",
    "billingAccountRef": {
      "id": "string",
      "href": "string"
    },
    "place": [
      {
        "id": "string",
        "name": "string",
        "role": "string",
        "address": {
          "type": "string",
          "community": "string",
          "country": "string",
          "district": "string",
          "internalAddress": "string",
          "latitude": "string",
          "locality": "string",
          "longitude": "string",
          "localNr": "string",
          "postcode": "string",
          "stateOrProvince": "string",
          "streetName": "string",
          "streetType": "string",
          "streetNr": "string",
          "city": "string"
        }
      }
    ],
    "productCharacteristic": [
      {
        "name": "string",
        "value": "string"
      }
    ],
    "productOffering": {
      "id": "string",
      "name": "string"
    },
    "productRelationship": [
      {
        "relationshipType": "implements",
        "Product": {
          "id": "string",
          "href": "string"
        }
      }
    ],
    "productSpecification": {
      "id": "string",
      "name": "string",
      "version": "string"
    },
    "relatedParty": [
      {
        "id": "string",
        "name": "string",
        "role": "string"
      }
    ],
    "state": "created"
  },
  "eventId": "string",
  "eventTime": "2024-11-24T16:47:34.286Z",
  "eventType": "string",
  "eventResult": "success",
  "correlationId": "string"
}

Responses

Status	Meaning	Description	Schema
201	Notified	Event notification successfully received	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Listener endpoint not found	None
405	Method Not Allowed	HTTP method is not allowed	None
500	Internal Server Error	Internal server error	None

Extensions

Field	Value
x-codegen-request-body-name	"data"

postProductDeleteEventListener

POST /listener/productDeleteEvent

Client listener for entity ProductDeleteEvent.

Parameters

This endpoint has no parameters.

Request Body

The event data to be notified.

Example:

{
  "event": {
    "id": "string",
    "href": "string",
    "category": "string",
    "description": "string",
    "endDate": "2024-11-24T16:59:28.097Z",
    "isBundle": true,
    "name": "string",
    "orderDate": "2024-11-24T16:59:28.097Z",
    "productSerialNumber": "2024-11-24T16:59:28.097Z",
    "startDate": "2024-11-24T16:59:28.097Z",
    "billingAccountRef": {
      "id": "string",
      "href": "string"
    },
    "place": [
      {
        "id": "string",
        "name": "string",
        "role": "string",
        "address": {
          "type": "string",
          "community": "string",
          "country": "string",
          "district": "string",
          "internalAddress": "string",
          "latitude": "string",
          "locality": "string",
          "longitude": "string",
          "localNr": "string",
          "postcode": "string",
          "stateOrProvince": "string",
          "streetName": "string",
          "streetType": "string",
          "streetNr": "string",
          "city": "string"
        }
      }
    ],
    "productCharacteristic": [
      {
        "name": "string",
        "value": "string"
      }
    ],
    "productOffering": {
      "id": "string",
      "name": "string"
    },
    "productRelationship": [
      {
        "relationshipType": "implements",
        "Product": {
          "id": "string",
          "href": "string"
        }
      }
    ],
    "productSpecification": {
      "id": "string",
      "name": "string",
      "version": "string"
    },
    "relatedParty": [
      {
        "id": "string",
        "name": "string",
        "role": "string"
      }
    ],
    "state": "created"
  },
  "eventId": "string",
  "eventTime": "2024-11-24T16:59:28.097Z",
  "eventType": "string",
  "eventResult": "success",
  "correlationId": "string"
}

Responses

Status	Meaning	Description	Schema
201	Notified	Event notification successfully received	None
400	Bad Request	Bad request	None
401	Unauthorized	Access token is missing or invalid	None
403	Forbidden	Access is forbidden	None
404	Not Found	Listener endpoint not found	None
405	Method Not Allowed	HTTP method is not allowed	None
500	Internal Server Error	Internal server error	None

Extensions

Field	Value
x-codegen-request-body-name	"data"

Schemas

Error

Description: Represents an error response.

Field	Type	Description
code*	string	Error code
reason*	string	Reason for the error
message	string	Additional details

Product

Description: Represents a Product entity.

Field	Type	Description
id	string	Unique identifier of the Product
href	string	Reference URL for the Product
category	string	Category of the Product
description	string	Product description
endDate	string (date-time)	End date of the Product
isBundle	boolean	Indicates if the Product is a bundle
name	string	Name of the Product
orderDate	string (date-time)	Date the Product was ordered
productSerialNumber	string	Serial number of the Product
startDate	string (date-time)	Start date of the Product
billingAccountRef	BillingAccountRef	Billing account associated with the Product
place	Array of Place	Place(s) associated with the Product
productCharacteristic	Array of Characteristic	Characteristics of the Product
productOffering	ProductOfferingRef	Product offering details
productRelationship	Array of ProductRelationship	Relationships with other Products
productSpecification	ProductSpecification	Specification of the Product
relatedParty	Array of RelatedParty	Related parties involved in the Product
state	ProductStateType	Lifecycle state of the Product

ProductOfferingRef

Description: Reference to a Product Offering.

Field	Type	Description
id*	string	Unique identifier
name	string	Name of the Product Offering

ProductStateType

Description: Valid values for the lifecycle state of the Product.

Enum Values:

created
active
suspended
terminated
in-progress
on-hold
failed
cancelled

Place

Description: Represents a place entity.

Field	Type	Description
id	string	Unique identifier
name	string	Name of the place
role	string	Role of the place
address	Address	Address of the place

Address

Description: Object representing an Address.

Field	Type	Description
type	string	Address type
community	string	Community
country	string	Country
district	string	District
internalAddress	string	Internal address details
latitude	string	Latitude coordinates
locality	string	Locality
longitude	string	Longitude coordinates
localNr	string	Local number
postcode	string	Postal code
stateOrProvince	string	State or province
streetName	string	Street name
streetType	string	Street type
streetNr	string	Street number
city	string	City

RelatedParty

Description: Represents a related party entity.

Field	Type	Description
id*	string	Unique identifier
name	string	Name of the related party
role*	string	Role of the related party

Characteristic

Description: Describes a characteristic of an object or entity.

Field	Type	Description
name*	string	Name of the characteristic
value*	string	Value of the characteristic

ProductRef

Description: Reference to a Product.

Field	Type	Description
id*	string	Unique identifier
href	string	Reference URL of the Product

ProductRelationship

Description: Represents a relationship between Products.

Field	Type	Description
relationshipType*	string	Type of relationship
Product*	ProductRef	Related Product entity

ProductSpecification

Description: Represents a Product specification.

Field	Type	Description
id*	string	Unique identifier
name	string	Name of the specification
version	string	Version of the specification

ErrorEvent

Description: Represents an Error event.

Field	Type	Description
event	Error	Error details
eventId	string	Unique identifier of the event
eventTime	string (date-time)	Time the event occurred
eventType	string	Type of event
eventResult	string	Result of the event
correlationId	string	Correlation identifier

ProductEvent

Description: Represents a Product event.

Field	Type	Description
event	Product	Product details
eventId	string	Unique identifier of the event
eventTime	string (date-time)	Time the event occurred
eventType	string	Type of event
eventResult	string	Result of the event
correlationId	string	Correlation identifier

BillingAccountRef

Description: Reference to a Billing Account.

Field	Type	Description
id*	string	Unique identifier
href	string	Reference URL of the Billing Account

BillingAccount

Description: Represents a Billing Account entity.

Field	Type	Description
id	string	Unique identifier of the Billing Account
href	string	Reference URL for the Billing Account
name	string	Name of the Billing Account
place	Array of Place	Associated place(s)
state	BillingAccountStateType	Lifecycle state of the Billing Account
characteristic	Array of Characteristic	Characteristics of the Billing Account
relatedParty	Array of RelatedParty	Related parties involved

BillingAccountStateType

Description: Lifecycle state of the Billing Account.

Enum Values:

active
closed
suspended
cancelled

Troubleshooting Service Inventory API
